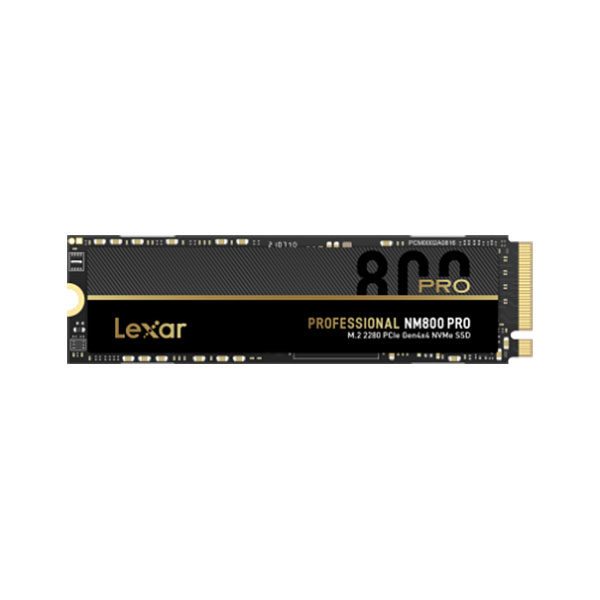

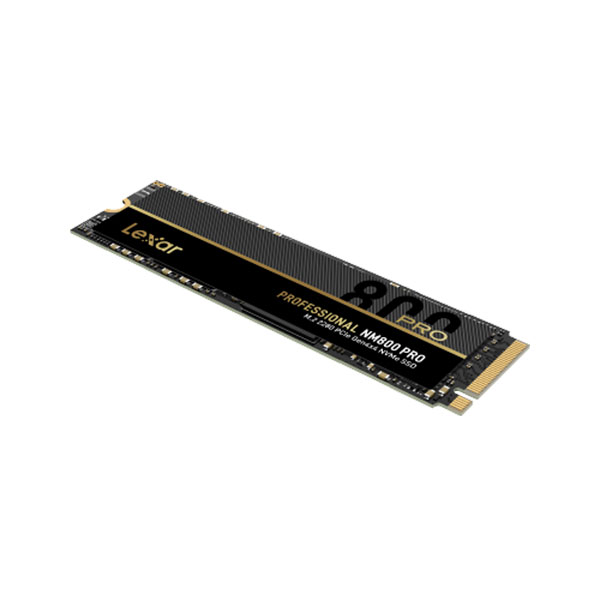

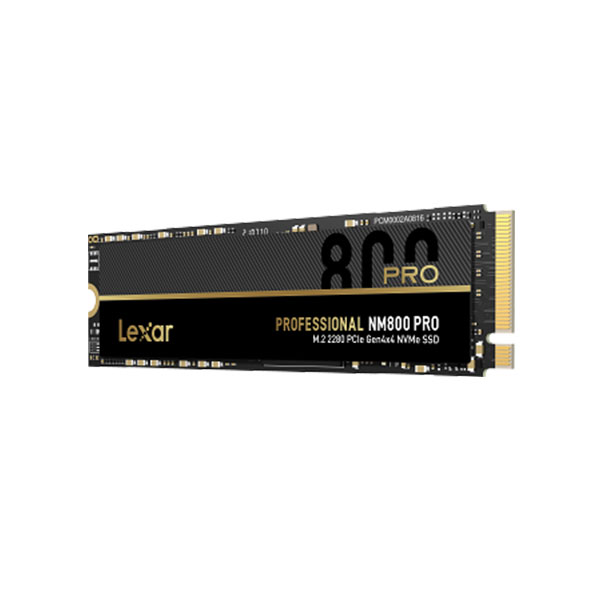

| Model | Lexar NM800PRO |
| Capacity | 512GB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4x4 |
| Performance | sequential read up to 7450MB/s, sequential write up to 3500MB/s, random 4K Read/Write up to 500/900K^1 |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Shock Resistant | 1500G, duration 0.5ms, Half Sine Wave^2 |
| Vibration Resistant | 10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)^2 |
| MTBF | 512GB: 500TBW |
| TBW | 3D TLC |
| Dimension (L x W x H) | 80 x 22 x 2.45 mm / 3.15” x 0.87” x 0.10” |
| Weight | 9g / 0.02lbs |
| Warranty | 5-Years Limited Warranty |
