| Warranty | 1 year warranty |
| General | Rectifier Type : IGBT Rectifier
Transfer Time: Zero
Waveform (Batt. Mode): Pure sine wave
Over Load Performance : 105%-125%; 60-30S, >125%;more than 200ms
Charging Current: 8A
Float Charging Voltage: 274 VDC*1%
Isolation Transformer: Built-in
|
| Efficiency | Up to 91% (AC Mode) |
| Input | Input Frequency Range: 40 Hz-70 Hz |
| Voltage Range | Input Voltage Range: Three-Phase 228Vac-478Vac
Output Voltage Range: Single phase 240/230/220 Vac
|
| Battery | Battery type (Std.Back up) : 12 V, 18AH (External battery cabinet)
Battery type (Long Back up): Depending on the capacity of external batteries
Battery Quantity: 32(Selectable)
|
| Protection | Protection Level: IP 20 |
| Output | Single-phase 220/230/240 Vac |

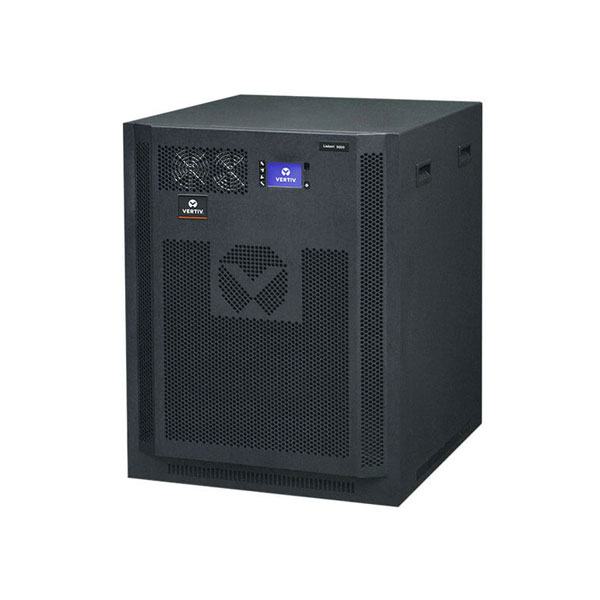

| Basic Information | Model: Liebert S600
Capacity: 20 KVA (20000VA/20000W)
Power factor: 1(unity)
Rated Voltage: three-phase four wires 400Vac
|
| Alarm | Battery Mode, Low Battery Overload Fault |
| Management | Power management from SNMP manager(built-in) and web browser
|
| Physical | Dimension (Long run model) : 550x620x700
Net weight: 138 Kgs (Unit)
|
