| Communication and Management | Smart Rs 232/USB: Support windows 2000/2003/XP/Vista/2008/Linux/UNIX and MAC
|
| Environmental Parameters | Operating temperature: 0 to 40 deg. centigrade
Storage temperature: -20 to 50 deg. centigrade
Noise level: <45db @ 1 meter
|
| System parameters and Standards | EMI: EN 62040-2: 2006
SAFETY: EN 62040-1-1: 2003
Performance(technical feature): IEC / EN 62040 – 3
|
| Input | Configuration: 1 phase, L-N + PE
Nominal Voltage: 230V
Voltage range: 110V-280V @ 50% load
Frequency range: 40 – 70 Hz
Power Factor: >=0.99@ nominal voltage(100% load)
|
| Battery | Type: maintenance-free lead-acid battery
Backup Time: Standard backup
Battery Capacity: 9 AH
No. of battery blocks sustain (LB Model): 2
|
| Output | Capacity: 1000VA/800 W
Power Factor: 0.8
Nominal Voltage: 220 / 230 / 240 Vac
Voltage regulation: 1%
Frequency range: 47 Hz-53Hz or 57 Hz-63 HZ
Frequency Range battery mode: 50 Hz or 60 Hz +/-1%
Crest Factor: 3:1 max.
Harmonic distortion: <= 3% THD(Linear Load)
AC Efficiency: 92%
Battery Mode Efficiency: 88%
Transfer time: 0 millisecond
|

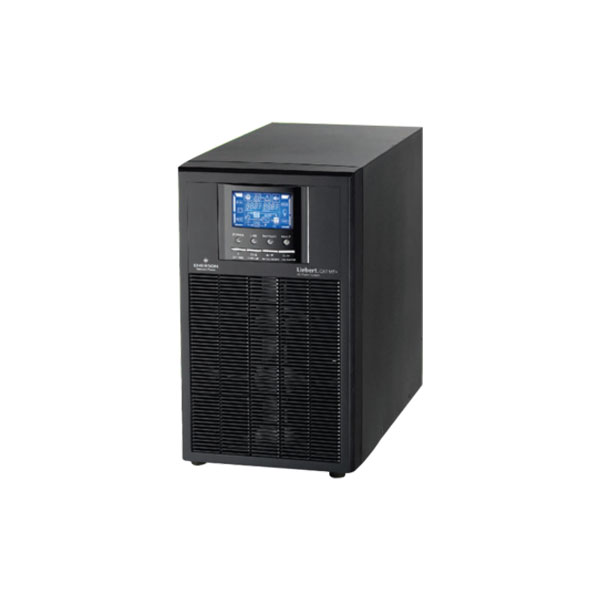

| Basic Information | Brand: Vertiv
Country of Origin: USA
Model: Liebert GXT MT+ CX
|
| Physical | Depth X Width X Height (mm): 282 x 145 x 220
Colour / Panel finish: Black
Protection: IP20
Communication Port: RS232, USB
EPO (Emergency Power off Mode): Yes
Monitoring Software: SNMP(optional), dry contact card, UPSilon 2000
|
| Warranty | 1 Year (UPS), 6 Months (Battery) |
