| Environmental Parameters | Operating temperature: 0 to 40 deg. centigrade
Storage temperature: -15 to 50 deg. centigrade
Noise level: <40db @ 1 meter
|
| System parameters and Standards | EMI: EN 62040-2: 2006
Safety: EN 62040-1-1: 2003
Performance (technical feature): IEC / EN 62040 – 3
|
| Input | Voltage: 220/230V
Voltage range: 140V-300V
Frequency range: 50HZ
|
| Battery | Type: Maintenance-free lead-acid battery
Backup Time: standard backup
Battery Capacity: 7 Ah
No. of battery: 1
|
| Output | Capacity: 650/390 W
Nominal Voltage: 220 / 230 / 240 Vac
Voltage regulation: 1%
Frequency range: 50±1%
Transfer time: 2 to 6 ms
AC voltage regulation: ±10%
Waveform: Simulated sine wave
|
| Basic Information | Brand: Vertiv
Country of Origin: USA

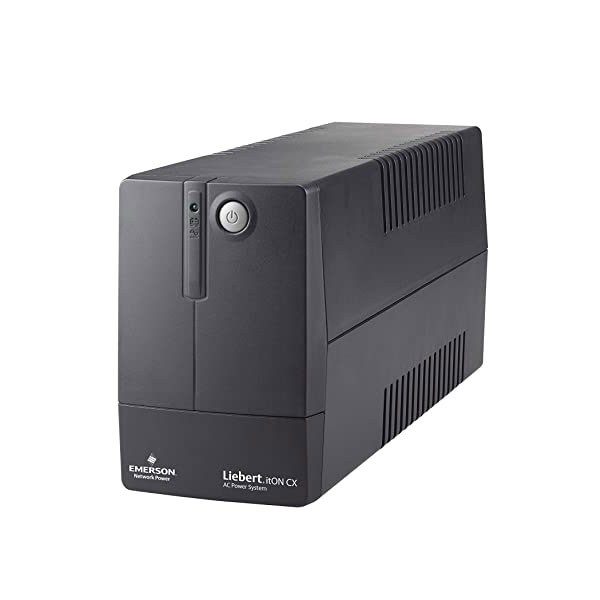

Model: ITON CX 650VA
|
| Alarm | Alarm is provided
|
| Physical | Depth X Width X height (mm): 282x101x242
Color / Panel finish: Black
Protection: IP20
|
| Warranty | 1 Year Warranty (UPS), 6 Months (Battery) |
