| Environmental Parameters | Operating Environment: 0-40 deg C
Stroage temp: -15 to 50 Deg C
Humidity: 0-95 % RH @ 0-40 degree C( non -condensing)
Noise level: Less than 40db
|
| Input | Voltage: 220/230Vac
Voltage Range: 140-300VAC
Frequency Range: 50 Hz
|
| Battery | Battery type & Number: 12V/7Ahx2
Typical recharge time: 6-8 hours up to 90% capacity
|
| Protection | Overload, discharge, and overcharge protection
|
| Output | Ac Voltage regulation(batt. Mode): ±10%
Frequency Range(batt. Mode): 50 Hz±1 Hz
Transfer time: Typical 2-6 ms
Waveform(batt. Mode): Simulated Sine Wave
Overload: 100% ± 10% shutdown after 5 minutes
|

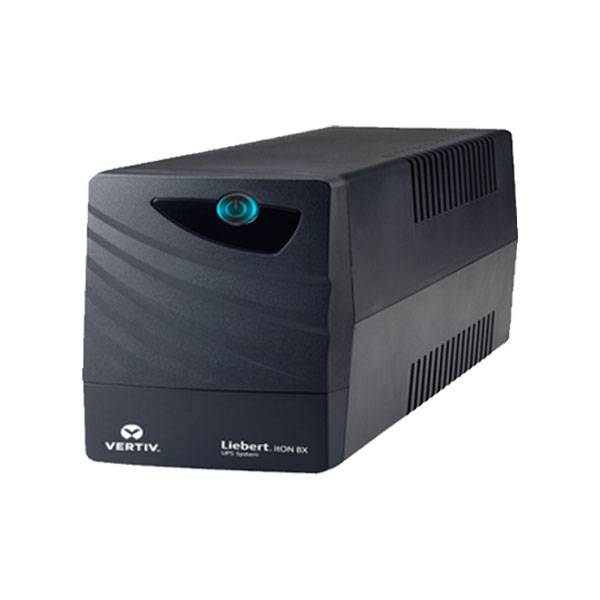

| Basic Information | Brand: Vertiv
Country of Origin: USA
Model: ITON CX 1000VA
Capacity: 1000VA/600W
|
| Indicators | AC Mode: Green light
Battery Mode: Green Flashing
Fault: Red Light
|
| Alarm | Alarm is provided
|
| Physical | 369x141x160 (DxWXH mm) |
| Warranty | 1 Year (UPS), 6 Months (Battery) |
