Specification:
| General | Model: H7 Flow RGB
Model Number: CM-H71FW-R1
Type: Mid-Tower
Color: White
|
| Key Specs | Motherboard Support: Mini-ITX, Micro-ATX, ATX
Enclosure Type: Mid-Tower
SGCC Steel, Ultra-clear Tempered Glass
|
| Compatibility & Clearance | Max CPU Cooler Clearance: Up to 185mm
Max GPU Clearance: Up to 400mm
Front Radiator Clearance: 60mm
Top Radiator Clearance: 30mm
Cable Management: 18-22mm
PSU Clearance: Up to 200mm
|
| Expansion Slots | Standard: 7
Vertical: 0 |
| Drive Bays | 2.5": 4+2
3.5": 2
|
| Fan Support | Front: 3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included)
Top: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included)
Filters: All Air Intakes
|
| Fan Specs | Model: F140 RGB Core Fan (Case Version)
Speed: 1200 ± 120 RPM
Airflow: 61.74 CFM
Static: 2.06mm-H2O
Noise: 29.05 dBA
Fan Connector: 3-pin
Model: F120Q (Case Version)
Speed: 1200 ± 240RPM
Airflow: 62.18 CFM
Static: 1.05 mm - H2O
Noise: 25.1 dBA
Fan Connector: 3-pin
|
| Fans Included | Includes 3x pre-installed F140 RGB Core fans & 1x F120Q Quiet Airflow fan |
| Radiator Support | Front: Up to 360mm with Push/Pull
Top: Up to 360mm
Rear: Up to 140mm
|
| Front I/O Ports | USB 3.2 Gen 1 Type-A: 2
USB 3.2 Gen 2 Type-C: 1
Headset Audio Jack: 1
|
| Inside the Box | H7 Flow Case with fans (see specs): 1
F140 RGB Core Fan (pre-installed): 3
F120Q Airflow Fan (pre-installed): 1
Installation Accessories: 1
Manual: 1
|
| Weight & Dimensions | Height (With Feet): 505mm
Height (Without Feet): 480mm
Width: 230mm
Depth: 480mm
Weight: 10.57kg |
Description:
NZXT H7 Flow RGB ATX Mid-Tower Casing - White

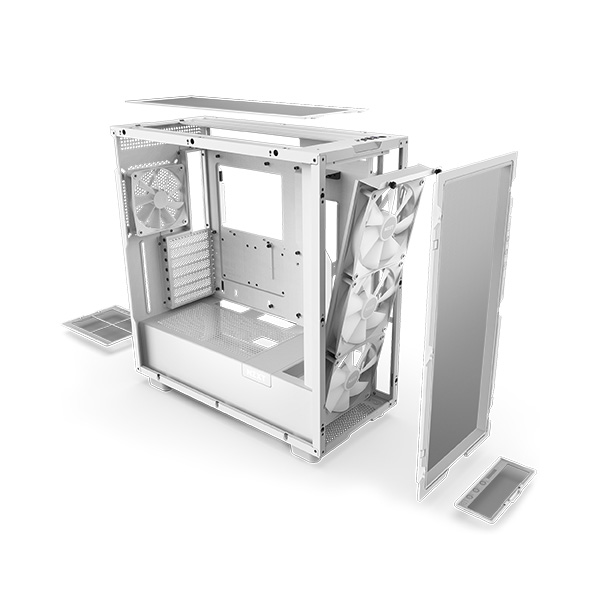

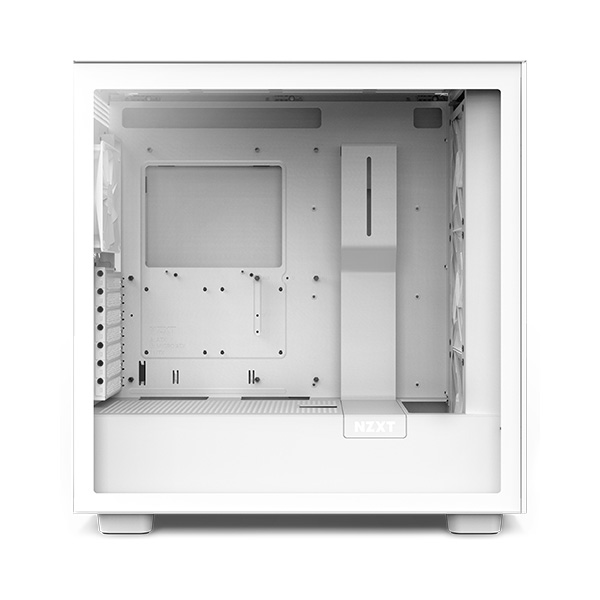

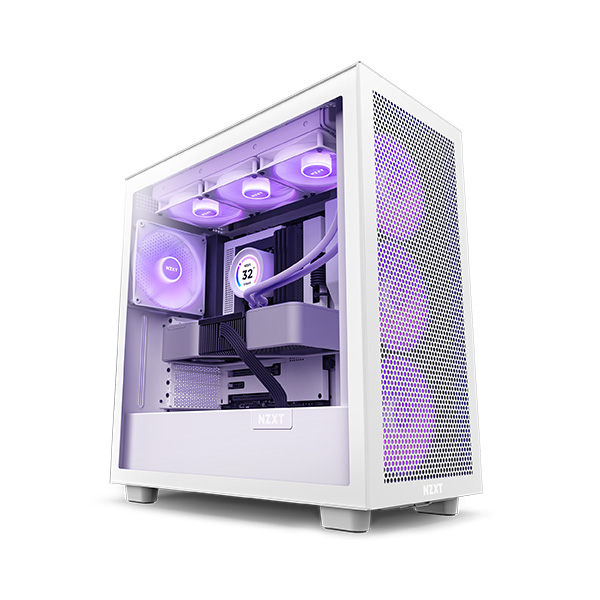

NZXT H7 Flow RGB ATX Mid-Tower Casing in classic White, designed for Mini-ITX, Micro-ATX, and ATX motherboards. Made with SGCC steel and dark-tinted tempered glass, this mid-tower case combines durability with a sleek aesthetic. Equipped with 3x of pre-installed 140mm RGB Core fans at the front and an additional F120Q Quiet Airflow fan at the rear, the H7 Flow RGB is primed to infuse vibrant RGB lighting into your system. This case supports various fan configurations, with space for 3x 120mm or 3x 140mm fans at the front, 3x 120mm or 2x 140mm fans at the top, and 1x 120mm or 1x 140mm fan at the rear. Radiator support includes up to 360mm at the front with push/pull, 360mm at the top, and 140mm at the rear. Connect effortlessly with the front I/O ports, featuring 2x USB 3.2 Gen 1 Type-A ports, 1x USB 3.2 Gen 2 Type-C port, and a convenient headset audio jack.
Optimized for high-performance airflow, the perforated front and top panels guide filtered air through the case, effectively cooling components and enhancing overall system performance. Experience dynamic RGB lighting with three pre-installed F140 RGB Core fans that seamlessly connect to a standard 5V ARGB header. The H7 Flow RGB is ready for top-tier graphics cards, accommodating most NVIDIA GeForce RTX 40 Series with its generous 365mm clearance. Showcase your GPU vertically using the optional NZXT Vertical GPU Mounting Kit. Ensure efficient cooling with support for up to a 360mm radiator or 3 x 140mm fans in the front and top panels. Cable management is simplified with wide channels, hooks, bridges, and straps, providing an organized and clutter-free build.
Overview of NZXT H7 Flow RGB ATX Mid-Tower Casing - White:
- Includes three pre-installed F140 RGB Core fans and one F120Q Quiet Airflow fan.
- Features perforated front & top panels for optimal thermal performance.

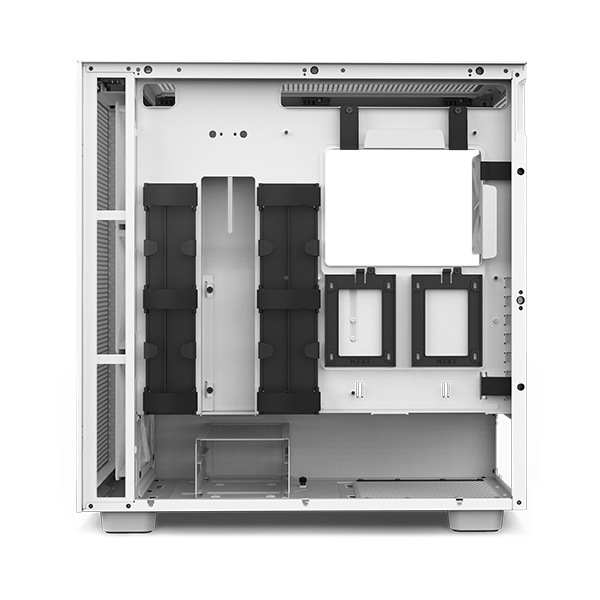

- Features an intuitive cable management system with wide channels, hooks, & straps.
- Supports radiators up to 360mm.
- Connects multiple F140 RGB Core fans to 5V ARGB header.
- Supports vertical GPU mounting.
- Features two top-mounted USB 3.2 Type-A and one top-mounted USB 3.2 Type-C ports.
Upgrade your gaming rig with the NZXT H7 Flow RGB – where style meets functionality for an immersive RGB experience that keeps your components cool and your system running smoothly.
Where to buy NZXT H7 Flow RGB ATX Mid-Tower Casing - White?
You can buy your desired NZXT H7 Flow RGB ATX Mid-Tower Casing - White at Global Brand PVT LTD. We are the authorized distributor of NZXT in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
