Specification:
| General | Model: H7 Elite 2023 Edition
Model Number: CM-H71EB-02
Type: Mid-Tower
Color: Black
|
| Key Specs | Motherboard Support: Mini-ITX, Micro-ATX, ATX
Enclosure Type: Mid-Tower
Case Material: SGCC Steel, Dark Tinted Tempered Glass
|
| Compatibility & Clearance | Max CPU Cooler Clearance: Up to 185mm
Max GPU Clearance: Up to 400mm
Front Radiator Clearance: 60mm
Top Radiator Clearance: 30mm
Cable Management: 18-22mm
|
| Expansion Slots | Standard: 7
Vertical: 0 |
| Drive Bays | 2.5": 4+2
3.5": 2
|
| Fan Support | Front: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm / 1 x 140mm
Filters: All Air Intakes
|
| Fan Specs | Model: F140Q (Case Version)
Speed: 1200 ± 240RPM
Airflow: 99.56 CFM
Static Pressure: 1.14 mm-H2O
Noise: 24.18 dBA
Fan Connector: 3-pin
Model: F140 RGB Core Fan
Speed: 500-1,500 ± 150 RPM
Airflow: 90.79 CFM
Static Pressure: 3.22 mm H2O
Noise: 34.48 dBA
Fan Connector: 4-pin PWM
|
| Fans Included | 3x pre-installed F140 RGB Core Fans
1x pre-installed F140Q Airflow Fan
|
| Radiator Support | Front: Up to 360mm with Push/Pull
TopUp to 360mm
Rear: Up to 140mm
|
| Front I/O Ports | USB 3.2 Gen 1 Type-A: 2
USB 3.2 Gen 2 Type-C: 1
Headset Audio Jack: 1
|
| Inside the Box | H7 Elite Case: 1
F140Q Airflow Fan (Case Version) (pre-installed): 1
F140 RGB Core Fan (pre-installed): 3
RGB Controller: 1
Installation Accessories: 1
Manual: 1
|
| Weight & Dimensions | Height:505mm (With Feet)
Width:230mm
Depth:480mm
Weight:11.36 kg
|
Description:
NZXT H7 Elite 2023 Edition Premium ATX Mid-Tower Casing - Black
NZXT H7 Elite 2023 Edition Premium ATX Mid-Tower Casing in sleek black designed to support Mini-ITX, Micro-ATX, and ATX motherboards. This mid-tower case is made with a sturdy construction of SGCC steel and dark-tinted tempered glass. The H7 Elite stands out with its maximum CPU cooler clearance of up to 185mm and supporting graphics cards up to 400mm in length. With versatile fan support, the case supports up to 3x 120mm or 3x 140mm fans at the front, 3x 120mm or 2x 140mm fans at the top, and 1x 120mm or 1x 140mm fan at the rear. Experience top-notch cooling capabilities with radiator support, including up to 360mm with push/pull at the front, 360mm at the top, and 140mm at the rear. The convenient front I/O ports feature 2x USB 3.2 Gen 1 Type-A ports, 1x USB 3.2 Gen 2 Type-C port, and a headset audio jack for seamless connectivity.

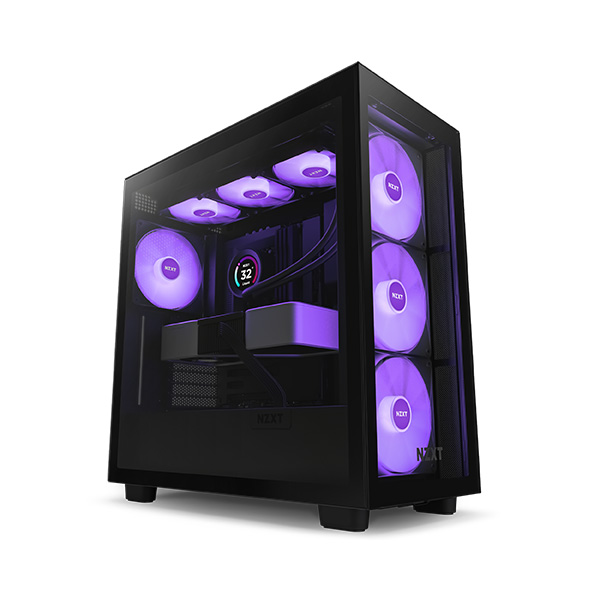

The H7 Elite takes your PC aesthetics to the next level with a tempered glass front panel, showcasing three pre-installed F140 RGB Core Fans. The built-in RGB controller allows for customizable lighting, providing a visually stunning experience. Ready for high-performance components, this case fits NVIDIA GeForce RTX 40 Series graphics cards with its impressive 400mm clearance. Showcase your GPU vertically using the optional NZXT Vertical GPU Mounting Kit for added flair. Enjoy spacious cooling support with up to a 360mm radiator or 3 x 120mm fan configuration in the front and top panels. Cable management becomes hassle-free with wide channels, hooks, bridges, and straps, ensuring a tidy and organized build.
Overview of NZXT H7 Elite 2023 Edition Premium ATX Mid-Tower Casing - Black:
- Features perforated top panel.
- Intuitive cable management system.
- Toolless access to front & side panels.
- Supports radiators up to 360mm.
- Pre-installed F140 RGB Core and F140Q Airflow Fans.
- Supports vertical GPU mounting.
- RGB Controller.
- Tempered glass front panel.
- Top-mounted USB 3.2 Type-A and Type-C ports.
