| General | Model Number: PA-0G1BB-UK
Dimensions: 150 x 150 x 86mm
Material(s): Steel, PCB and Plastic
Compliance Standard: ATX12V v2.52 / EPS12V v2.92
|
| Energy Efficiency | Rating: 80 Plus Gold
20% loading: 87% @115Vac
50% loading: 90.5% @115Vac
100% loading: 87.5% @115Vac
|

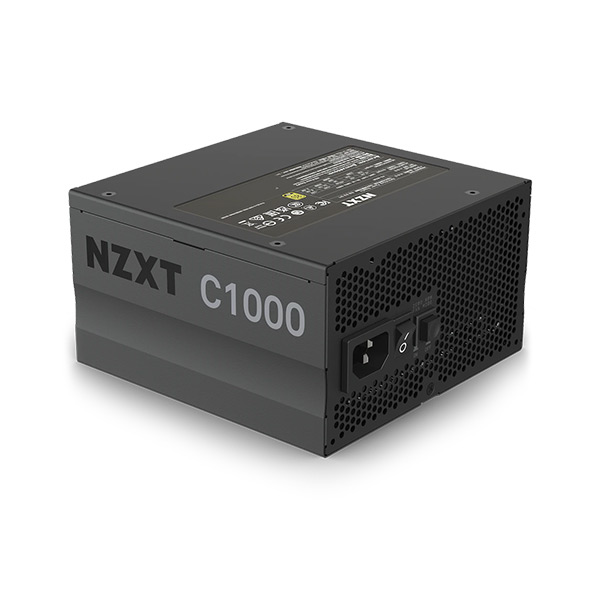

| AC Input Rating | 100 - 240Vac: 13A-6.5A 50Hz-60Hz
|
| DC Output Rating | +3.3V and +5V: 22A (120W)
+12V: 83.5A (1002W)
-12V: 0.3A (3.6W)
5Vsb: 3A (15W)
Total: 1000W
|

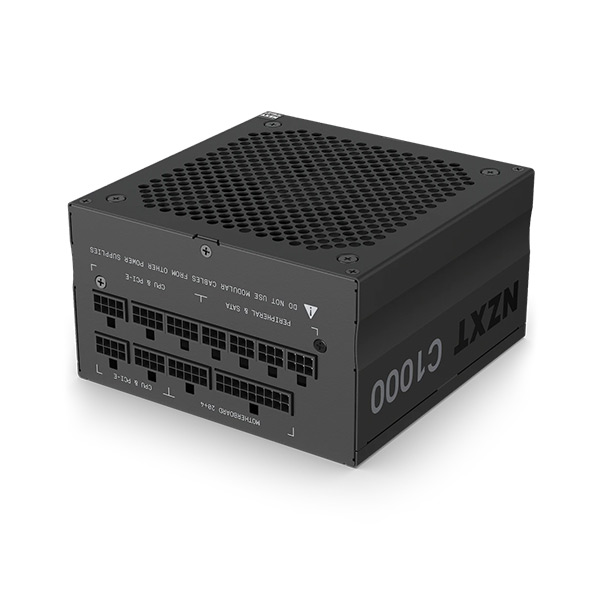

| Output Connectors | 24-pin ATX power: 1
4+4-pin CPU power:2
6+2-pin PCIe power: 6
SATA power: 6
Peripherals: 6
|
| Cable Specs | 24-pin ATX power: 600 mm, Nylon sleeving
4+4-pin CPU power: 700 mm, Nylon sleeving
6+2-pin PCIe power: 650 + 150 mm, Nylon sleeving
SATA power: 500 + 150 mm
Peripherals: 500 + 150 mm
|

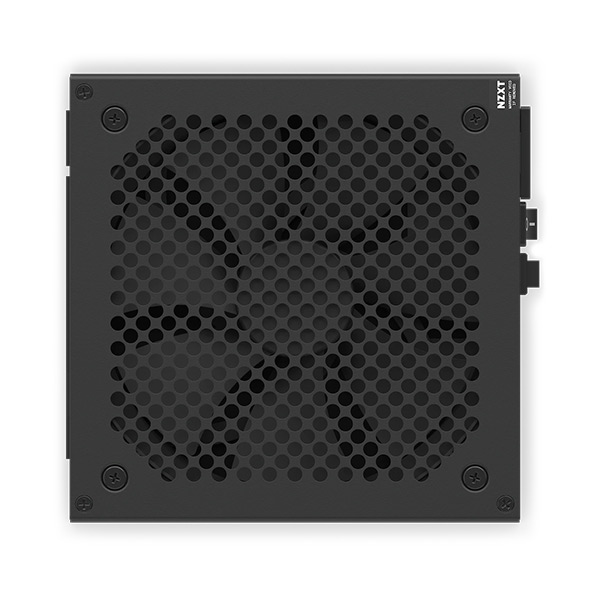

| Fan Specs | Dimensions: 135 x 135 x 25 mm
Speed: 0-2300 ± 10% RPM
Airflow: 93.02 CFM (Tpy.)
Noise: 44.5 dBA max
Bearing: Fluid Dynamic Bearing (FDB)
|
| Operation | PF Correction: Active @0.96
MTBF: 100,000 hours
Temperature:< 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)
|
| Warranty | 10-Years Brand Warranty |
