Specification:
| ATX VERSION | Intel ATX 12V Ver. 2.53 |
| Connectors | ATX 24 Pin Connectors: 1
EPS 4+4 Pin Connectors: 1
EPS 8 Pin Connector: 1
SATA Connectors: 12
Peripheral 4 Pin Connectors: 4
PCI-e 6+2 Pin Connectors: 6
|
| Dimensions | 160 x 150 x 86 mm |
| Efficiency | ≥ 92% @ Typical Load |
| FAN SPEED | 1800 RPM |
| HOLD UP TIME | 100 - 150 ms |
| INPUT CURRENT | 12-6A |
| INPUT FREQUENCY | 50-60Hz |
| INPUT VOLTAGE | 100-240V |
| Model | MPG-8501-AFBAP-XUK |
| MODULAR | Fully Modular |
| MTBF | >100,000 Hours |
| OPERATING TEMPERATURE | 0-50°C |
| PFC | Active PFC |
| POWER GOOD SIGNAL | 100 - 150 ms |
| PROTECTIONS | OPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection |
| REGULATORY | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA |
| Series | XG Series |
| Wattage | Above 750W |
| Fan Size | 135mm |
| Warranty | 10-Year Brand Warranty |
Description:

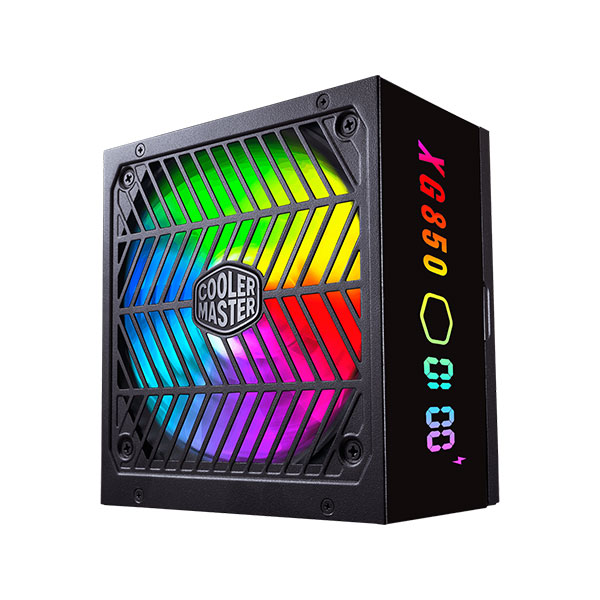

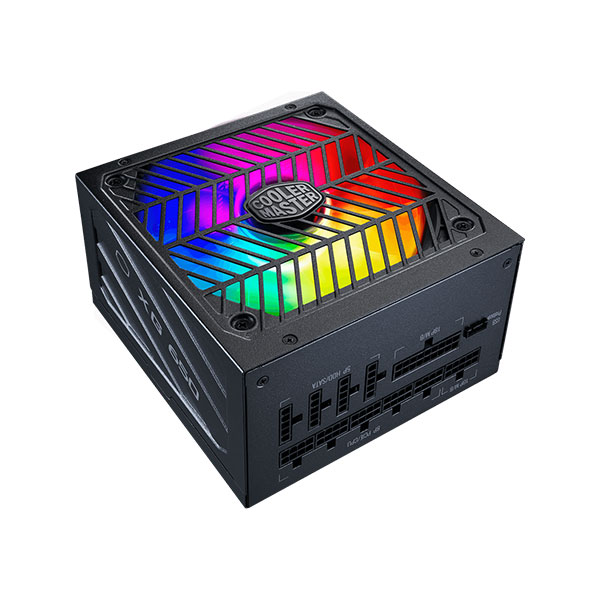

Cooler Master XG850 Plus Platinum Full Modular 80 Plus Platinum ARGB Power Supply

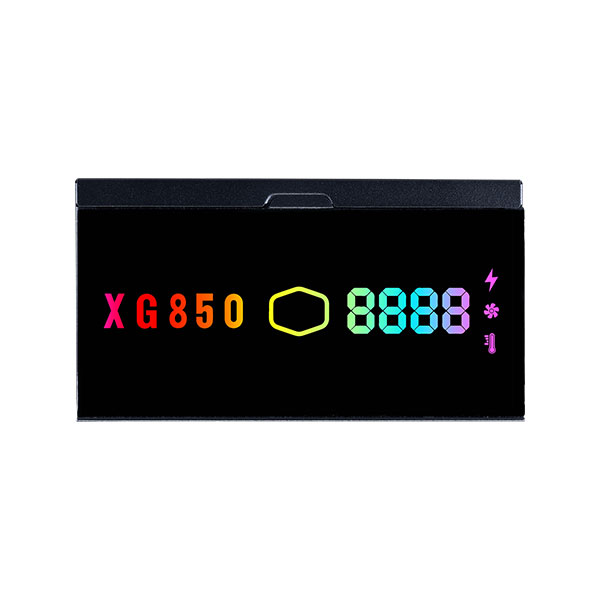

Cooler Master XG850 Plus Platinum Full Modular 80 Plus Platinum ARGB Power Supply is the flagship of PSU innovation with top-notch performance and efficiency meeting all the demands for system and gaming. Featuring Intel ATX 12V V2.53 compatibility, this power supply can be merged with any system with optimal and seamless integration. The XG850 Plus is rated with the 80 PLUS Platinum, thus presents high energy efficiency which eventually makes power consumption go lower while performance stays optimal. As one of the most important features, an ARGB 135mm fan with low noise: silent but strong, come to the background to do the work while turning keeping your setup quiet. This power supply provides the latest features through its inbuilt Information Display Panel, where you can be able to attain the real-time monitoring of key performance metrics; such as fan speed, temperature, power load, and customizable ARGB lightning. Such as, the MasterPlus+ software is designed with the simplification principle in mind and, hence, these features are easily accessed and easily adjusted to suit the necessary needs.

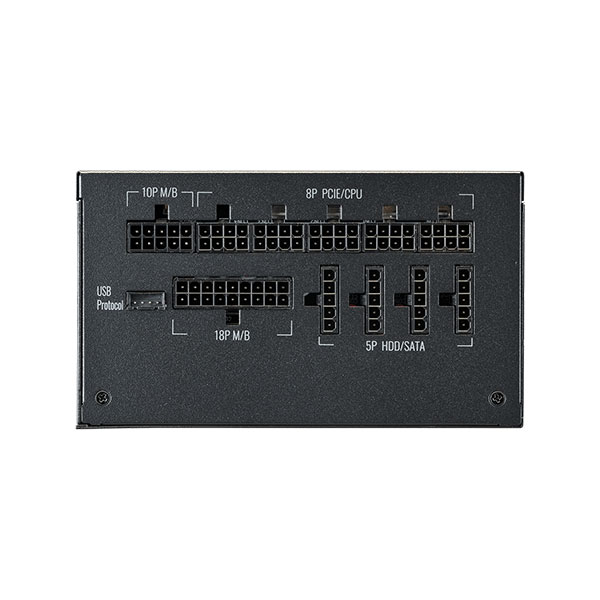

In terms of design, it is equipped with FLX (full-modular) cabling features and 100% JAPAN-made In-Line Capacitors, which allows for maximum flexibility and reliability. Hence, the XG850 Plus offers an enhanced cable management system and optimal power supply therefore minimizing cable clutter. With its 10-year warranty, you can be certain of the power quality and reliability of this PSU. Using futuristic technology, such as a DC-DC converter and the DC-DC full-bridge LLC resonant, it has the capability of keeping the voltage outside vary. Therefore, the work will sustain itself and be efficient with no fluent in performance. This power supply model will serve as the right choice to you, whether you are connecting your graphics cards to the most powerful gaming system or ensuring that your system platform is performing all the tasks without being disturbed. The RGB fan XG850 Plus Platinum AIO ARGB with a digital display panel adds elegant design elements to your installation while maintaining needed performance indicators. All the connectors are suitable for every component straight from the ATX 24 Pin, EPS 4+4 Pin, SATA, Peripheral 4 Pin, to PCI-e 6+2 Pin, it is never a challenge to make sure that you are using the right power supply.
Go beyond the average performance and efficiency by owning the Cooler Master XG850 Plus Platinum 80 Plus Full Modular Platinum ARGB Power Supply. Whether you are a gaming fanatic or a professional user, this PSU is your best companion which will help you to get reliable and efficient power delivery all the time.
